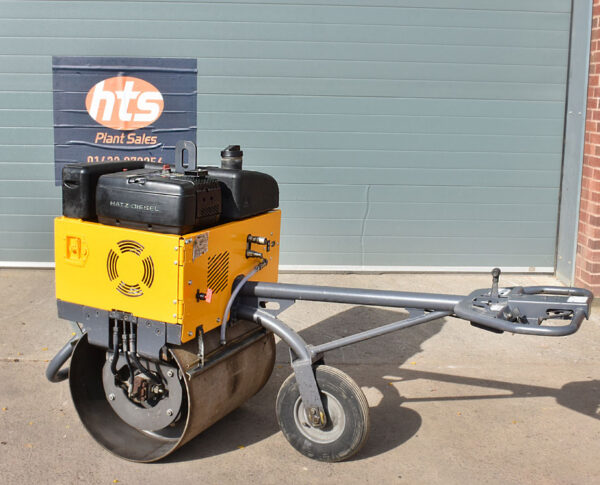

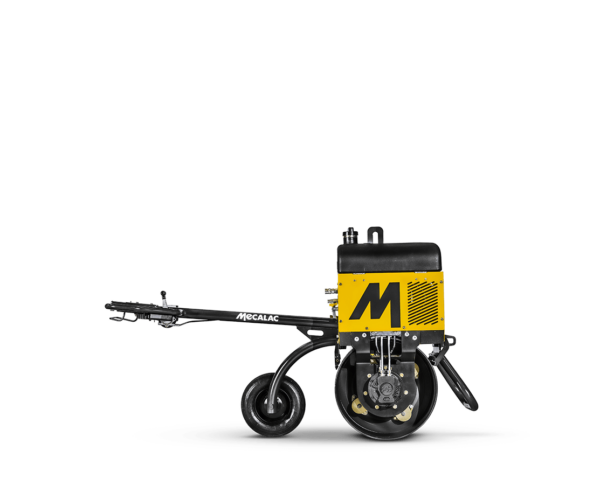

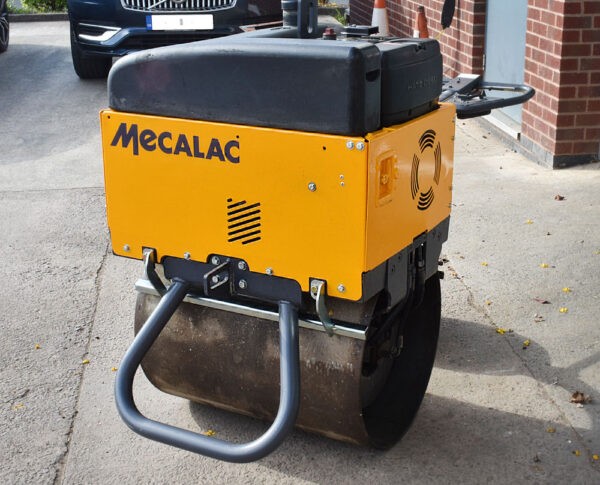

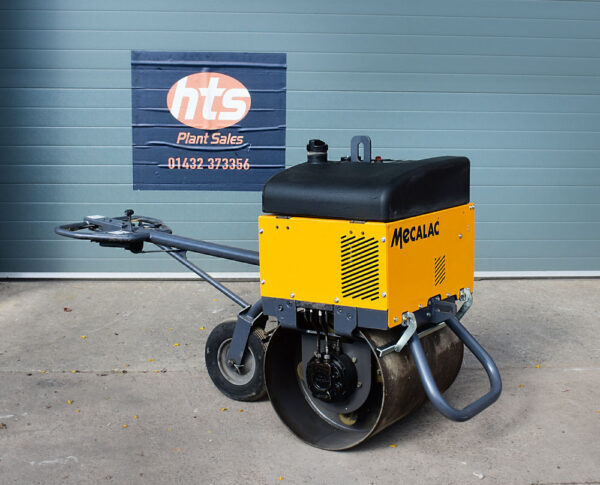

Mecalac MBR71 Roller

Brand New Mecalac MBR71 Roller, comes with a 12 month warranty This doesn’t include trailer, gun & hoses.

Designed for the compaction of granular and asphalt materials, Mecalac Pedestrian rollers provide class leading performance in applications including highway repair, footpaths, cycle lanes, playgrounds and landscaping environments. The proven design provides superb balance, making it easy to manoeuvre in tight spaces.

Rubber couplings in the drum reduce vibration transfer for low hand-arm (HAV) levels for additional comfort. The MBR71 Roller is fitted with a ‘hold to run’ handle so that the hydraulic drive cuts off if the control lever is released.

Total operating weight: 513 kg (1,130 lb)
Engine power (kW/hp): 7,3 kW (9.8 hp)
Travel speed: 4 km/h (2.5 mph)
Overall width: 772 mm (2’6”)
Overall length: 2187 mm (7’2”)
Drum width: 710 mm (2’4”)
Centrifugal force: 1500 daN (3,372 lbf)
Frequency: 65 Hz (3,900 VPM)
Static linear Load: 7,2 kg/cm (40.3 lb/inch)
Amplitude: 0,57 mm (0’02”)
