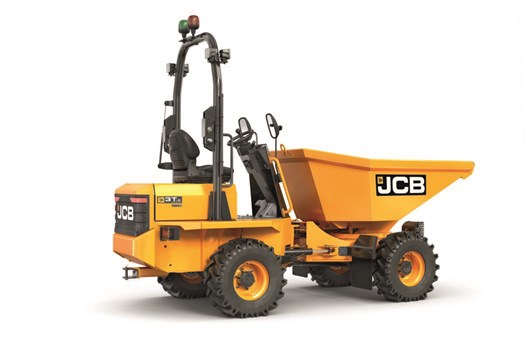

JCB 3T-2 (3 Tonne) Dumper
The JCB 3T-2 (3 Tonne Dumper) is a robust and versatile machine designed for heavy-duty material handling on construction and landscaping projects. While known for its durability and performance, it can still experience common mechanical, hydraulic, and electrical issues due to regular use.
This knowledge base provides clear, practical solutions to troubleshoot and resolve common problems, along with essential maintenance tips. By identifying issues early and applying the right fixes, you can minimize downtime, extend the dumper’s lifespan, and keep it operating at peak performance.
1. Engine Starting Issues
Problem:
- Engine struggles to start or doesn’t start at all.
- Battery issues, fuel blockages, or glow plug failure (diesel engine).
Solutions:
- Battery: Check voltage, clean terminals, and ensure connections are tight. Charge or replace the battery if weak.
- Fuel System: Inspect fuel lines, filter, and tank for blockages; replace clogged filters. Bleed air from the fuel system.
- Glow Plugs: Test glow plugs for continuity and replace faulty units for better cold starting.
- Starter Motor: Inspect for wear and replace if faulty.
2. Hydraulic System Problems
Problem:
- Tipping mechanism or steering becomes slow, unresponsive, or jerky.
- Hydraulic oil leaks or contamination.
Solutions:
- Fluid Levels: Check and top up hydraulic oil to the correct level with manufacturer-recommended fluid.
- Leaks: Inspect hoses, connections, and seals for leaks. Replace damaged components.
- Contaminated Oil: Drain and replace hydraulic oil and filters regularly.
- Pump/Valve Issues: Test hydraulic pumps and control valves for performance; repair or replace if faulty.
3. Transmission Issues
Problem:
- Difficulty shifting gears, loss of drive, or sluggish performance.
- Transmission overheating or fluid leaks.
Solutions:
- Fluid Levels: Check transmission oil levels; top up or replace with the correct grade if needed.
- Clutch (Manual): Inspect clutch operation; adjust or replace worn components.
- Leaks: Identify and repair leaks in seals or gaskets.
- Overheating: Clean transmission coolers and ensure airflow is unobstructed.
4. Brake System Failures
Problem:
- Brakes feel weak, spongy, or unresponsive.
- Brake fluid leaks or worn components.
Solutions:
- Brake Fluid: Check levels and top up with the correct fluid. Bleed air from the system.
- Leaks: Inspect brake lines, master cylinder, and wheel cylinders for leaks; replace faulty parts.
- Brake Pads/Discs: Replace worn pads, discs, or drums.
5. Overheating Engine
Problem:
- Engine temperature rises excessively, leading to reduced performance or shutdown.
- Blocked radiator, coolant leaks, or water pump failure.
Solutions:
- Coolant Levels: Check and top up coolant. Use the correct antifreeze mix.
- Radiator: Clean dirt and debris from the radiator and ensure good airflow.
- Leaks: Inspect hoses, gaskets, and water pump for leaks; replace as needed.
- Thermostat: Test and replace a stuck thermostat.
6. Electrical Faults
Problem:
- Lights, dashboard, or warning systems stop working.
- Battery drains quickly or fails to charge.
Solutions:
- Fuses and Wiring: Check fuses, wiring, and connections for damage or corrosion. Repair or replace faulty components.
- Battery/Alternator: Test the alternator to ensure it’s charging the battery properly; replace if faulty.
- Switches/Sensors: Inspect faulty switches or sensors and replace them to restore system function.
7. Excessive Exhaust Smoke
Problem:
- Black smoke: Excess fuel burn or poor air intake.
- Blue smoke: Oil burning (worn rings/seals).
- White smoke: Coolant burning (head gasket issue).
Solutions:
- Black Smoke: Check and clean air filters, turbocharger, and fuel injectors.
- Blue Smoke: Inspect piston rings, valve seals, and turbo for oil leaks. Replace worn parts.
- White Smoke: Check for coolant leaks, test the head gasket, and inspect the radiator.
8. Steering and Suspension Problems
Problem:
- Steering feels stiff, unresponsive, or noisy.
- Uneven wear on tyres or excessive vibrations.
Solutions:
- Hydraulic Steering: Check hydraulic fluid and hoses for leaks; repair or replace components as needed.
- Tyres: Inspect for uneven wear, maintain correct tyre pressures, and replace damaged tyres.
- Bushings and Joints: Lubricate or replace worn suspension bushings and steering joints.
9. Tipping Skip Malfunction
Problem:
- Skip fails to tip or tips unevenly.
- Hydraulic ram issues or misalignment.
Solutions:
- Hydraulics: Check for leaks, low fluid levels, or damaged hydraulic rams. Repair or replace faulty components.
- Misalignment: Inspect skip mountings and hinges; realign or tighten bolts as necessary.
- Controls: Test hydraulic control levers and valves; replace faulty parts.
10. Body and Frame Wear
Problem:
- Corrosion, cracks, or structural damage from heavy use.
Solutions:
- Rust Prevention: Regularly clean and treat rusted areas with inhibitors and repaint.
- Structural Repairs: Weld or replace damaged structural components promptly to prevent further wear.
Maintenance Tips for JCB 3T-2 Dumper
- Conduct daily checks on fluids, tyres, and visible leaks before operation.
- Follow the service intervals for engine oil, hydraulic oil, filters, and general inspections.
- Grease moving parts such as tipping mechanisms, steering joints, and suspension components regularly.
- Address minor issues promptly to prevent costly breakdowns and downtime.
By staying proactive with maintenance and troubleshooting, you can ensure your JCB 3T-2 Dumper remains reliable, efficient, and ready for work. If you still need help you can contact a experienced professional – That’s Us!
